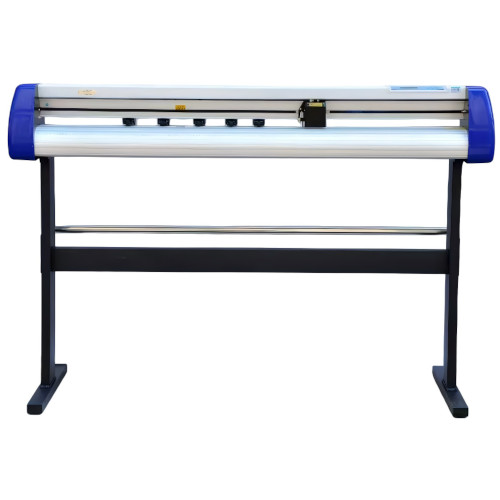

Cutting Plotter RS1360C

Reference prices are shown as listed in the supplier catalog on 11 Oct 2026. Currency symbols are retained as displayed. Request a current quotation; availability, exact version and compatibility are confirmed per inquiry.

Send your printer model and clear old-part photos. We confirm the correct version before quotation. Catalog entries do not confirm current stock or an approved configuration.

Product Details ⌄

CCD Camera Automatic Edge Patrol Parameter Table

Maximum width of paper feeding:1380MM

Maximum width for regular cutting :1260MM

Maximum width for edge cutting:1200MM

Cutting length infinitely long: No limit

Bracket and height :Metal Bracket 70cm

Compatible with computer systems: Xp, Win7, Win10

Control and LED Screen: Top mounted control panel and display screen, LCD display, mechanical press keyboard

Drive mode :16 subdivision, 1.8 ° stepper motor, belt drive

Cutting speed : 1-800mm/s

Cutting pressure : 1-500g

Mechanical repeatability accuracy : 0.254mm

Data instruction : HPGL, USB offline output

Data interface : COM, USB, USB flash drive

Voltage requirement: AC90-240v (50/60Hz)

Rated power: 80w

Operating in an external environment: Temperature of 0-45 degrees Celsius and a humidity of 20-70% without condensation

Machine size (cm):150cm x 35cm x 100cm

Packaging size (cm): 161cm x 32cm x 39cm

Gross weight of equipment (kg): 26kgs

Net weight of equipment (kg): 22kgs

Included items and support are supplied only against the confirmed written quotation. Images do not define the included scope.
