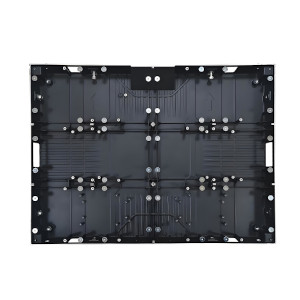

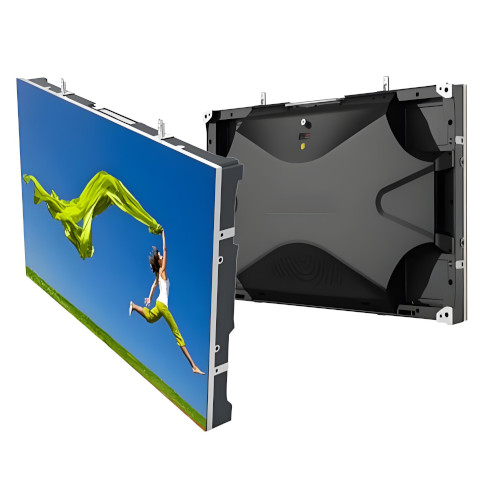

Utile Series LED Display Screen in renting style

Ultra-thin & ultra-light

Cast-aluminum structure，high precision with seamless splicing

Standard cabinet: 500mm*500mm, convenient for area computation

Highly effective & quick for transportation and screen assembling

SMD black light，big view angle，high-contrast（5000:1），soft image

Special buckles structural connection between the cabinets，don’t need other tools

Cabinets are in common use for standard modules，shorten production cycle

Product Basic Technical Parameters

Product type: YW-R3 YW-R4 YW-R5A YW-R5B YW-R6A YW-R6B

Pixel pitch（mm): 3.9 4.8 5.2 5.68 6.25 6.94

Brightness( cd/m2 ):1200 1300 1200 1200 1100 800

LED type :SMD2121 SMD3528（black light） SMD3528（black light） SMD3528（black light） SMD3528（black light） SMD3528（black light）

Contrast ratio: 5000:1

Color temperature: 6500K

Pixel composition: 1R1G1B

View angle: 120:100

Main technical Parameter

Cabinet Resolution: 128×128 104×104 96×96 88×88 80×80 72×72

Refresh rate: ≥1000Hz ≥1000Hz ≥1000Hz ≥1000Hz ≥1000Hz ≥1000Hz

Power（MAX/AVG）/cabinet: 165W/55W 195W /65W 180W/60W 180W/60W 165W/55W 150W/50W

Module size(mm): 250×250 500×250

Cabinet size(mm): 500×500

Weight(Kg): 8.5

Area( m2 ): 0.25

Aspect Ratio: 1:1

Gray grade: 14bit

Protection grade: IP30

Working temperature and humidity: 0℃~+45℃/10~90%RH

Storing temperature and humidity: -40℃~+60℃/10~90%RH

Installation: Hanging installation/Ground installation

Brightness control: Manual/Automatic

Video frame rate: 50/60Hz

Input voltage: 100~240VAC

Input power frequency: 47~63Hz

LED wavelength: R:620~630nm G:520~535nm B:465~475nm

Input signal: S-VIDEO,CVBS,YPbPr,RGB,VGA,DVI,HDMI,HDSDI & DisplayPort,etc

Communication connection: CAT5 Cable )( L≤140m )； multi-mode fiber ( L≤500m )； single mode fiber: ( L≤20km )

Mean free error time: ≥5000hours

Service life: ≥100,000hours

Malfunction dot rate: ＜0.1‰
