P16 Outdoor LED Screen

Reference prices are shown as listed in the supplier catalog on 11 Oct 2026. Currency symbols are retained as displayed. Request a current quotation; availability, exact version and compatibility are confirmed per inquiry.

Send your printer model and clear old-part photos. We confirm the correct version before quotation. Catalog entries do not confirm current stock or an approved configuration.

Product Details ⌄

Name Specification

Ustorm P16 "LED lamps:DIP346, 1R1G1B real pixel,

brightness:>7500nits,Static scan"

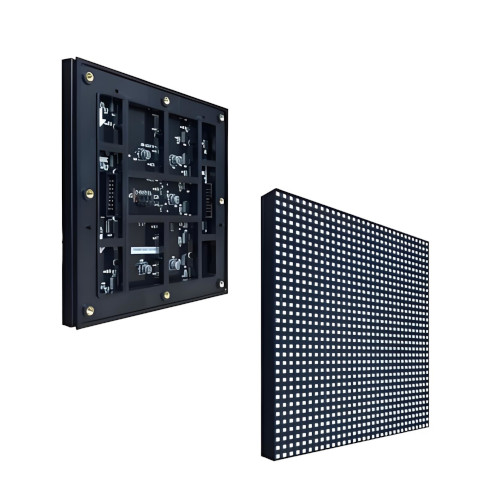

Module size:200*400mm,Module resolution:12x24 dots

Cabinet size:1200x1200mm, Cabinet Resolution: 72*72 dots

"Total Cabinets:W8XH4= 32pcs

Cabinet size:1200x1200mm (Back service)"

Screen Size:W9.6*H4.8m=46.08sqm

Resolution:576dots(w)* 288dots(h)=165,888dots

Driving IC：SUM2017T

IP Rating: IP65/54

Control System

Sending Card [Nova] Control System for Full Color Led Display [SD300E]

Receiving Card [Nova] Control System for Full Color Led Display

Multi-function card with light sensor (adjust the brightness according to the environment)

Operation System

Included items and support are supplied only against the confirmed written quotation. Images do not define the included scope.
